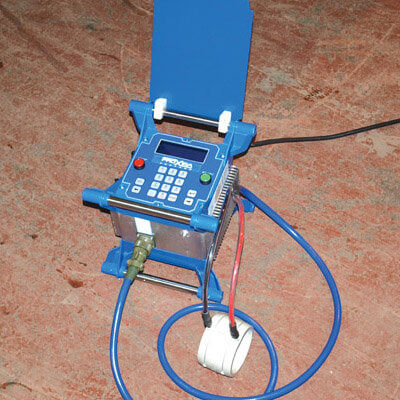

20mm - 1000mm Proxima EF Fusion Welder Hire
HDPE Electrofusion Welder
This 40v fusion machine is designed specifically for quickly and efficiently connecting all major MDPE electro-fusion fittings. It uses the extreme heat and pressure produced during welding to make simple, reliable, rigid joints between pipes. The heat required to make the joint comes from flowing a constant electrical current through the embedded heater wires within the sleeve fitting, which is placed around the two pipes. The pressure required to make the joint is obtained via the shrinking of the fitting under welding conditions. The shrinking process does not alter the internal bore of the joint because the ends and the centre of the fitting are deliberately kept cold during the welding process. This ensures a strong, reliable professional joint. Once the joint is completed, the heater wires remain encased in the MDPE so there is no chance of corrosion. The connecting sleeve fitting must be fitted evenly between both pipes and the pipes must have clean cut, straight, burr-free edges to provide the most reliable, long-lasting joint.
This electrofusion welder gives you functionality, reliability, and affordability and is capable of welding all brands of fittings between 20mm and 1000mm. It features a protective hard case, automatic fitting recognition, barcode scanning, and manual data entry options for ease of use. Ergonomically designed to sit on large diameter pipes, a large display and keypad, as well as a host of other features, will guarantee to satisfy the needs of the modern welding professional.
-
Input Voltage 110v Input Frequency 40 - 60Hz Input Current [Max. A] 16A Input Power 3kW Output Voltage [Vac RMS] 8 - 48v Output Current [Continuous. Aac RMS] 60A Environmental Protection IP54 Data Recording Capacity 704 Records Coupling Size Range 20mm - 1000mm Dimensions [HxWxL] 360 x 330 x 350mm Weight 26kg Case Material ABS & Aluminium Mains Input Cable Length 4m Fusion Output Cable Length 4m Standard Please note: This product description and specification is based on the model most widely stocked across our network of partner stores. Alternative brands of equivalent specification may be supplied based on location and availability.
-
